Your Premier Choice for PCB Supplier
Precision Engineering for Advanced PCB Solutions

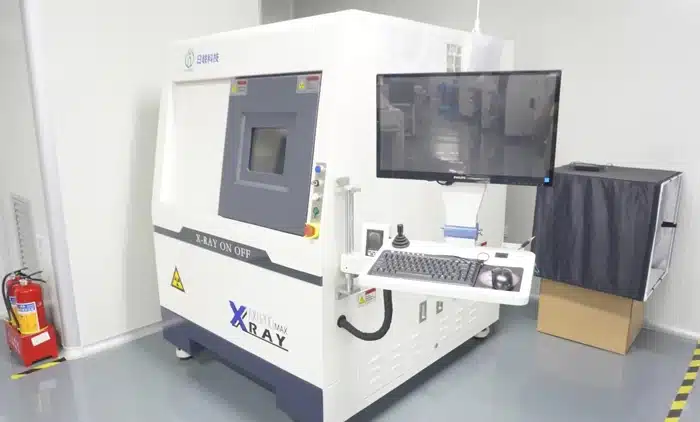

Explore unparalleled PCB craftsmanship with Kingsignal Circuit Co., Ltd. Our facility is equipped with cutting-edge technologies including AOI, LDI, 3D X-Ray, and Flying Probe systems, ensuring precision and excellence in every circuit board we manufacture.
Your Premier Choice for PCB Supplier
Precision Engineering for Advanced PCB Solutions
Explore unparalleled PCB craftsmanship with Kingsignal Circuit Co., Ltd. Our facility is equipped with cutting-edge technologies including AOI, LDI, 3D X-Ray, and Flying Probe systems, ensuring precision and excellence in every circuit board we manufacture.
Mastery in PCB Fabracition: Pioneering Precision and Scale
At Kingsignal Circuit Co., Ltd., we redefine the standards of PCB production with our extensive capabilities and unwavering commitment to excellence. Operating from a 50,000 square meter state-of-the-art facility, our team of over 800 skilled professionals is dedicated to delivering a wide range of PCB solutions. From intricate single-layer boards to complex multi-layer structures, our production is powered by advanced technologies such as AOI, LDI, and 3D X-Ray systems, ensuring unparalleled precision in every product. Our expertise is not just in crafting superior PCBs but also in scaling production to meet the demands of a global clientele, making us your trusted partner in the PCB industry.
PCB Manufacturing Capabilities
Board Types/ Dimensions
Single, Double, Multilayer PCB; Max Size: 600mm x 1200mm
Layer Counts
1-40 Layers
Turnaround time (Standard/Rush)
Normal: 5-6 Days
Expedited: 24-48 Hours
Materials
FR4, High TG FR4，Halogen Free material,CEM-3, Rogers HF material,Aluminum, Rogers, Teflon, Taconic, Arlon, Ceramic, etc
Finished Copper Thickness
0.5 oz to 12 oz
Finished Board Thickness
0.2-6.0 mm
Min. Line/Track Width&Space
2.4 mil / 2.4 mil (0.06mm)
Quality Certifications
ISO14001:2015, ISO9001:2015, Certified IATF16949: 2016,Certified
Technology
On-Across Blindried Vias, Characteristic Impedance Control, Rigid-flex Board etc.
Solder Mask Color Options
Green, black, blue, white, red, yellow, and matt, custom colors
Impedance Control
±10%
Legend/Silkscreen Color
White, yellow, black,custom colors
Electrical Testing
100%
Surface Finishes
HASL, Lead Free HASL, Immersion gold, OSP, Immersion tin, Immersion silver, etc.
Wrap and Twist
≤0.7%
Other Technology
Gold finger, peelable mask, Non-across blind-buried vias, characteristic impedance control, Rigid-flex board etc.
Board Types/ Dimensions
Single, Double, Multilayer PCB; Max Size: 600mm x 1200mm
Layer Counts
1-40 Layers
Turnaround time (Standard/Rush)
Expedited: 24-48 Days
Normal: 5-6 Days
Materials
FR4, High TG FR4，Halogen Free material,CEM-3, Rogers HF material,Aluminum, Rogers, Teflon, Taconic, Arlon, Ceramic, etc
Finished Copper Thickness
0.5 oz to 12 oz
Finished Board Thickness
0.2-6.0 mm
Min. Line/Track Width&Space
2.4 mil / 2.4 mil (0.06mm)
Quality Certifications
ISO14001:2015, ISO9001:2015, Certified IATF16949: 2016,Certified
Technology
On-Across Blindried Vias, Characteristic Impedance Control, Rigid-flex Board etc.
Solder Mask Color Options
Green, black, blue, white, red, yellow, and matt, custom colors
Impedance Control
±10%
Legend/Silkscreen Color
White, yellow, black,custom colors
Electrical Testing
100%
Surface Finishes
HAL, Lead Free HAL, Immersion gold, OSP, Immersion tin, Immersion silver, etc.
Wrap and Twist
≤0.7%
Other Technology
Gold finger, peelable mask, Non-across blind-buried vias, characteristic impedance control, Rigid-flex board etc.
Our Four Pillars of PCB Production
Outstanding Production Team
Our talented production team is the backbone of our PCB manufacturing success. They all have more than 20 years of production and manufacturing experience, bringing a wealth of experience and fresh perspectives to each project. Their commitment to excellence ensures every PCB meets the highest quality and performance standards. Always focused on precision and efficiency, our team strives to deliver products that exceed expectations and set new benchmarks in the industry.
Advanced Manufacturing Equipment

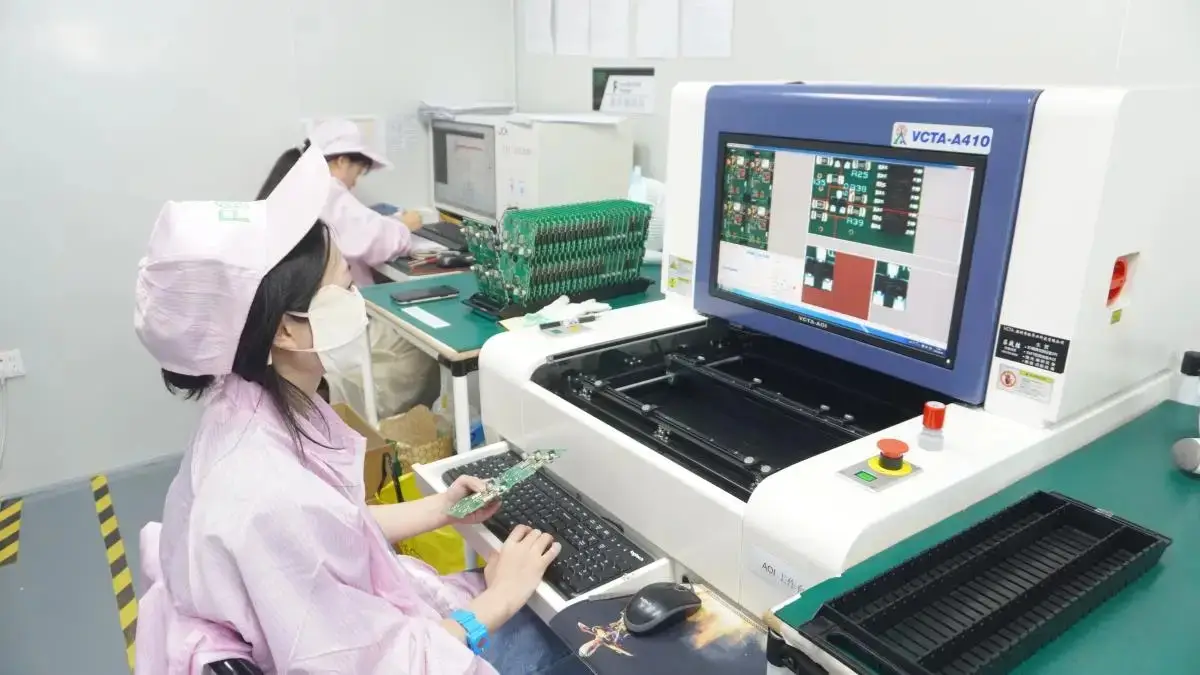

- AOI
- DI Systems

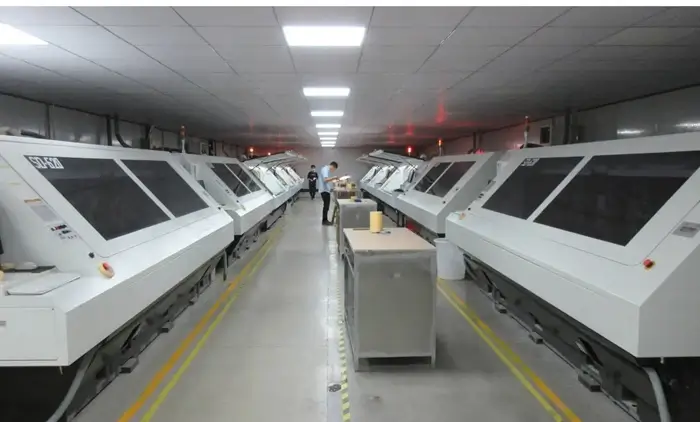

- high-precision laser drilling and routing machines
- Automated plating lines

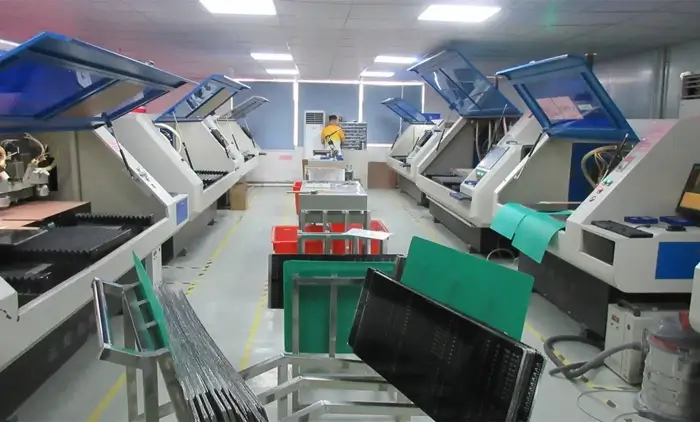

- CNC routing
- Electrical testing equipment
- laser etching systems
- laminating presses for multilayer PCB fabrication
Superior Production Techniques
Our expertise in On-Across Blindried Vias, Characteristic Impedance Control, and Rigid-flex Board technology sets Kingsignal apart in Superior Production Techniques. We are able to deliver extremely complicated PCBs that precisely match performance criteria because to these sophisticated capabilities. Our knowledge in these fields guarantees the best possible signal integrity, design flexibility, and compatibility with a broad range of applications, ranging from vital industrial systems to consumer electronics. This technological prowess demonstrates our dedication to offering clients innovative solutions that push the limits of what’s feasible in the PCB manufacturing industry.
Stringent Quality Control
At Kingsignal, our dedication to excellence is based on our strict quality control. Every step of our production process—from choosing the raw materials to conducting the final inspection—is covered by this exacting methodology, which guarantees that every PCB fulfills the highest requirements for performance and dependability. Our commitment to quality is demonstrated by our observance of global certifications and standards, ensuring that our customers obtain products that not only meet but also beyond their expectations.
Our Range of PCB Products
Double Layer PCB
Multilayer PCB
Metal Core PCB
Metal Core PCB
HDI PCB
Your Competitive Edge: Why Choose Kingsignal
No Minimum Order & Rapid Delivery
With no minimum order requirement and quick delivery options, Kingsignal provides unmatched flexibility. Orders as small as one piece can be fulfilled with a conventional turnaround time of 3–7 days or an accelerated 24-48 hour service.
Top-Quality Products
Kingsignal takes great satisfaction in providing high-quality goods. Every PCB is guaranteed to have unmatched performance and dependability thanks to sophisticated production processes and strict quality control measures.
Competitive Pricing Advantage
Kingsignal offers a competitive pricing advantage, ensuring clients receive superior PCB products at cost-effective rates, without compromising on quality or performance.
Round-the-Clock Personalized Service
Kingsignal provides round-the-clock personalized service, ensuring clients receive timely and customized support, enhancing their experience and satisfaction with every project.
Custom PCBs Broad with Easy
At Kingsignal Circuit, We turn complex Into Simple! Follow the following 3 steps to start today!
1
Tell Us What You Need
Tell us as specific as possible of your needs, provide the drawing, reference picture and share your idea.
2
Get Solution & Quote
We will work on the best solution according to your requirements and design, the specific quote will be provided within 24 hours.
3
Approve for Mass Production
We will start mass production after getting your approval and deposit, and we will handle the shipment.
